Shacman 10000 Liters 10tons Dust Suppression Water Tank Truck Water Bowser Water Sprinkler truck with Dust Control machine
Description:

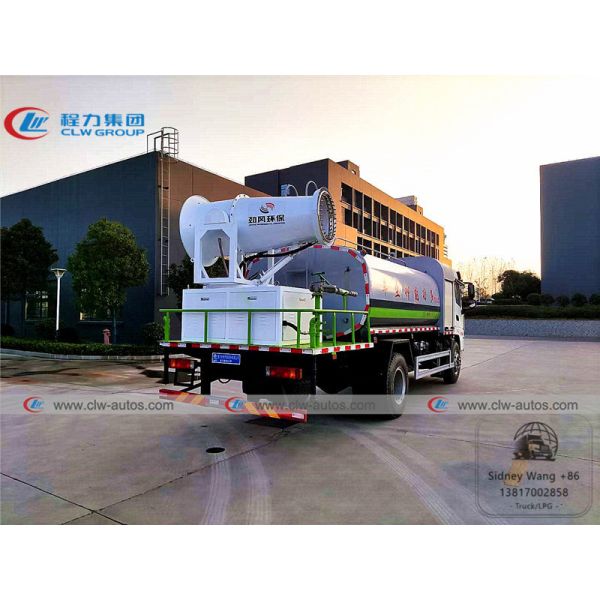

1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.
2) Low pressure flushing device
Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.
Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.
Advantage:
1. Water, disinfectant, dust suppressant and other liquid materials can be added in the tank, and the spray arm can rotate 360 degrees;
2. Contact induction spray system, uniform spraying, suitable for different size cars and vehicles, no spillage, spray arm with vehicle number recognition and recording function.
3. Simple operation: In the cab, all the operation functions of the vehicle can be completed.
Specifications:
| Production name | Shacman 4x2 10000Liters water tank dust suppression truck |
| Type | 4x2, Left hand drive |
| Weights | |
| Payload weight (kg) | 10000 |
| Curb weight (kg) | 8100 |
| Dimensions | |
| Wheelbase(mm) | 5200 |
| Overall Dimension(mm) | 8780×2480×3550 |
| Box/tank capacity | 10000Liters |
| Engine |
| Engine model | B245 33 |
| No of cyliner | straight-8 cylinder |
| Displacement(ml) | 8900 |
| Rated power | 180kw/245hp |
| Emission standard | EURO 5/6 |
| Drive Line | |
| Transmission | Fast, 9 forwards, 1 reverse gear, Manual operation |
| Steering | Power steering |
| Brake | Air brake |
| Cab | |
| Cabin | One row and half, 3 persons allowed |
| Configuration standard | Air conditioner, electric window, ABS, central locking |
| Tire | 10.00R20 standard tire, 6 tires+1 spare tire |
| Water specification | |
| Water tanker material | High quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h |
| Head of delivery(m): 90m |
| Self-priming function(min/4m):1.5 |
| Efficiency(%):95% |
| Related rotate speed(r/min)1180 |
| matched power(kw):22 |
Reference photos
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
