Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

Brand Name : CLW

Model Number : CLW9448

Certification : CCC ISO ASME

Place of Origin : Suizhou,China

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A

Supply Ability : 300units/month

Delivery Time : 30 days after received advance payments

Packaging Details : Naked package shipped by bulk ship

Truck brand : ISUZU,HOWO,DONGFENG,FAW,SHACMAN bulk feed truck

Material : carbon steel/aluminum alloy bulk feed trailer

Loading medium : bulk feed,grain,powder and so on

Volume : 30m3

Thickness : 4mm

Compartment : 1,2,3 optional

Color : Customized

Logo : As per your request

Purpose : chicken/duck/cow feed

Contact Now

Dongfeng 30m3 Bulk Feed Truck Chicken/Duck/Cow Animal Feed Truck

Dedicated configuration

The tank body is made of 4mm high-quality carbon steel plate, and the whole vehicle has 3 screw augers, driven by 3 5.5KW motors. The top screw auger is lifted by hydraulic control and can rotate 180° left and right.

The tank body is divided into three bins, which can independently control the discharge sequence and speed of each sub bin.

Description:

Model of Cab	Flat Top,Row and a half
Driving Type	4*2
Wheel Base	5000mm
Model of GearBox/Manufacturer	DF6S900/Dongfeng Automobile Gearbox Co., Ltd
Model of Engine/Manufacturer	ISB180 50/Dongfeng Cummins Engine Limited
Engine Capacity	5900ML
Rated Power	132(kW)/2500(r/min)/180hp
Max Maximum Torque	700(N.m)/1500(r/min)
Tyre Size	10.00R20 18PR

External Dimensions	1089024803900mm
Bulk Capacity	32m³
Number of Compartments	3
Engine Power/voltage	22kW/380V
Max Transport Height	7.9M
Max Transport Length	4.6M
Rated Discharge Capacity	450~600(kg/min)
Residual Rate	≤0.22
Turning Type	Electric
Others	ABB Motor,It could connect external electric power

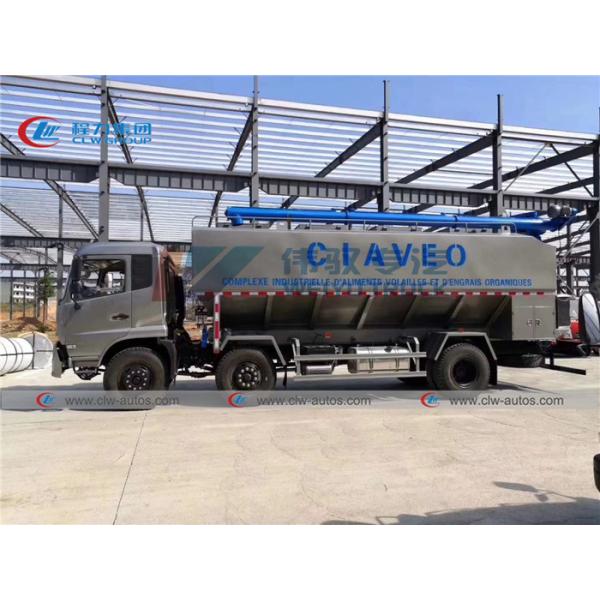

Bulk Feed truck reference photos

Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

Working show

Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

Bulk Feed Truck Diagram

Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers
